1.3 PiCu Isotherm Refrigerator Drawer Cruise 36

1.3 PiCu Isotherm Refrigerator Drawer Cruise 36

Name: 1.3 PiCu Isotherm Refrigerator Drawer Cruise 36
SKU: 4682
Availability: BackOrder

1.3 PiCu

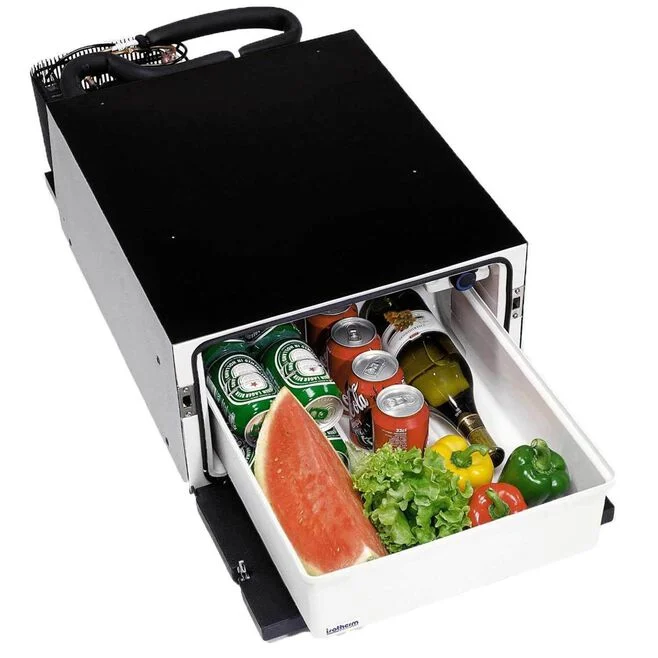

The CR 36 is a built-in drawer refrigerator with a unique design. Thanks to these compact dimensions, the CR 36 can be installed where no other refrigerator is suitable. The compressor can be mounted up to 3 feet. It comes with a matching black door with a black 3-sided flange (the depth is reduced by 6.2 inches when the compressor is mounted remotely).

Options

Clear

Quantity:

Isotherm

Features

GENERAL:

Model: Cruise 36 Classic AC/DC
Power supply: 12/24 V DC and 110/220 V AC (AC/DC)
Compressor: Danfoss/Secop BD35F (remote mounting)
Finish: Black door with 3-sided black flush-mounting flange
Installation: Sliding drawer with locking closure
Capacity: 36 litres (1.3 cu ft)
Type of mounting: built-in, ideal for bench bottom, compact kitchen or cabin

Isotherm limited warranty 3 years on each compressor, 2 years warranty on parts.

Specifications

ELECTRIC:

Input voltage:

DC: 12 / 24 V

AC: 100-240 V (via converter)

Typical consumption: ~300 Wh / 24h at 12 V (indoor at +5 °C, ambient at +25 °C)

Type of compressor: Secop (ex-Danfoss) BD35F

Recommended fuse: 15 A (12 V DC)

PERFORMANCE

Useful volume: 36 litres (1.3 ft 3)

Temperature range: Standard refrigeration (not designed as freezer)

Type of cooling: Closed circuit compressor, ventilated

Noise level: very low, thanks to a silent compressor offset

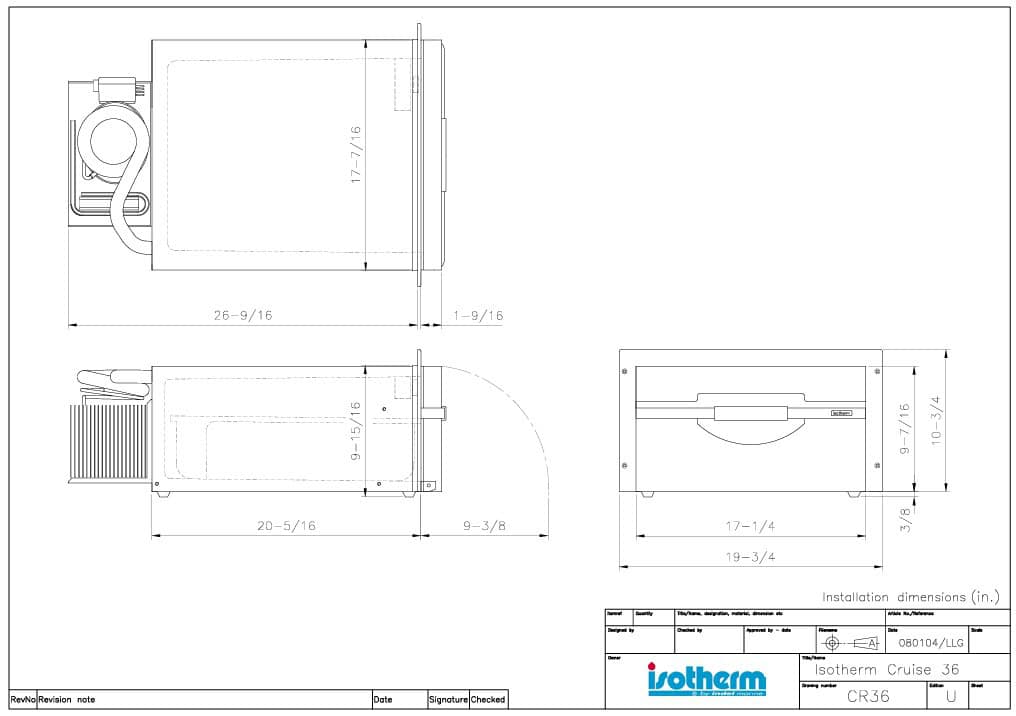

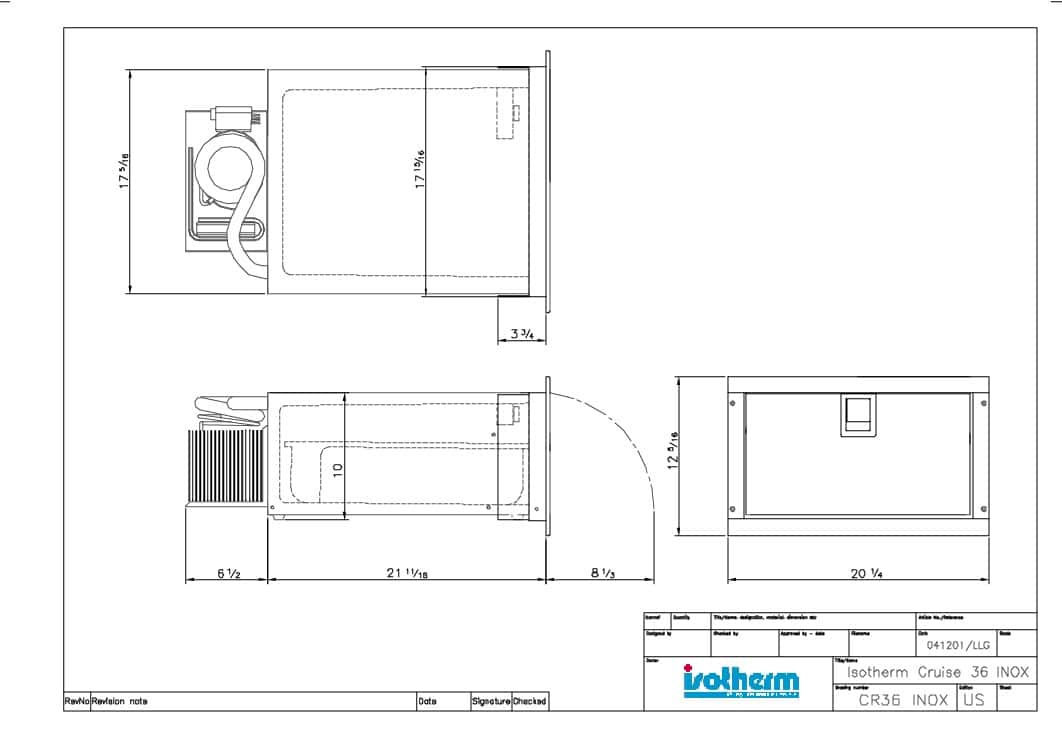

DIMENSIONS:

Height 25.4 cm (10″)
Width 44.2 cm (17.4″)
Depth 51.6 cm (20.3″)
